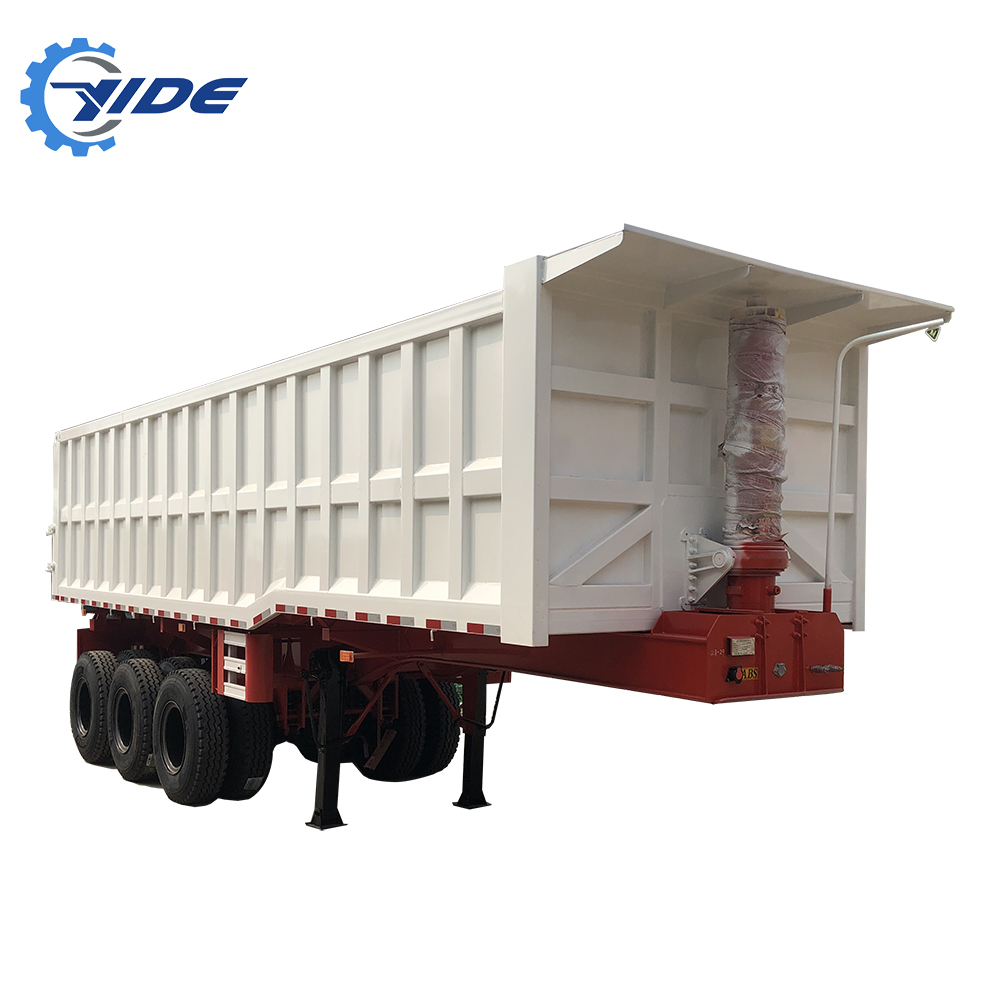

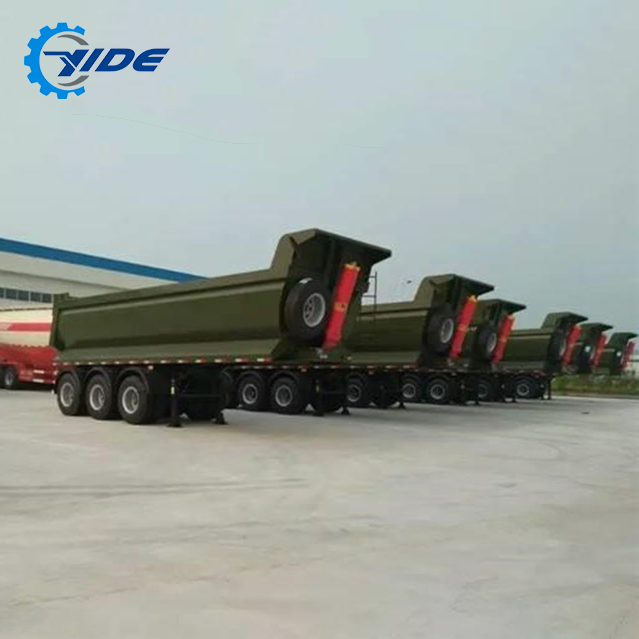

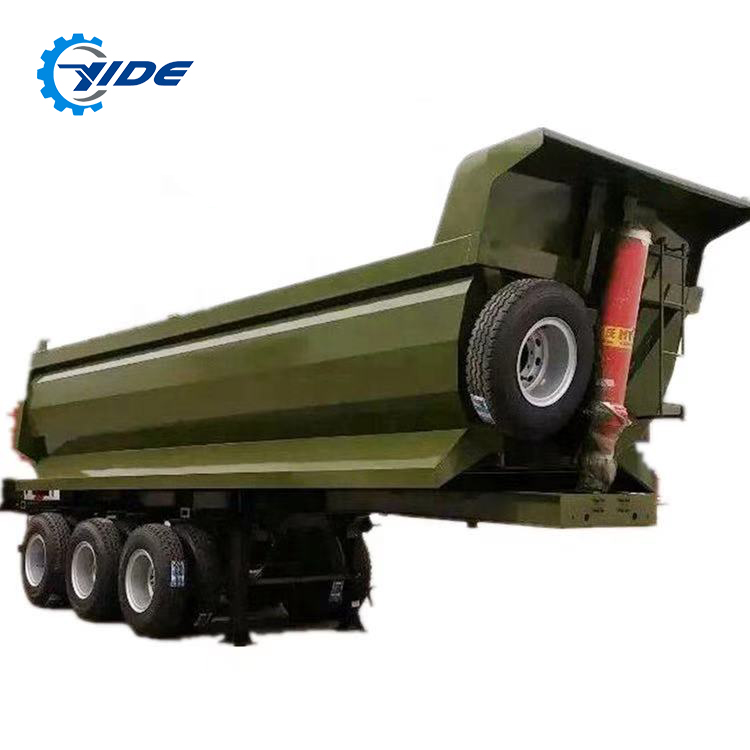

Dump semi trailer

Pay Load

60-80T

Loading Volume

40-60CBM

Dumper Bucket Thickness:

Side 6mm, Bottom 8mm

Suspension

Mechanical Suspension with 10-layers leaf spring

Steel

Q345B

Main Chassis

Beam Height 500mm

Top Flange Thickness 14mm

Bottom Flange Thickness 16mm

Middle Board Thickness 8mm

King Pin

2"(50mm)or3.5"(90mm)

Landing Gear

Heavy Duty 28ton*2

Tyre

12R22.5，12.00R20

Axles

3/4*13T

Hydraulic jack

214-5-6830

Light

Tail lamp with turn signal,brake light & reflector,side lamp etc

Electric System

24V, One Set 6-core Standard Cable

Tool Box

1pc

Spare Tire Rack

1pc

Painting

Primer Coating, Top Painting, Wax Polishing

Color

Any color
