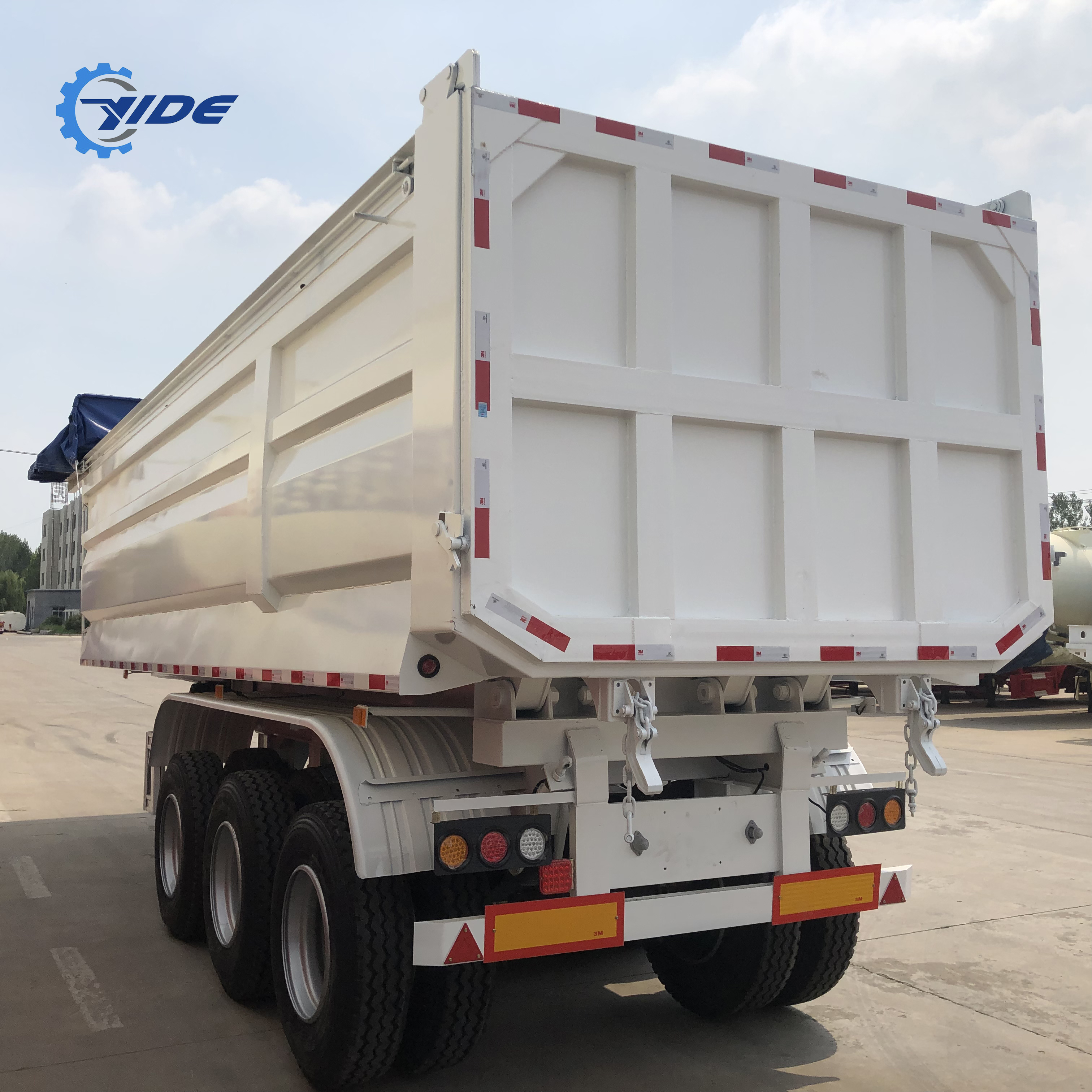

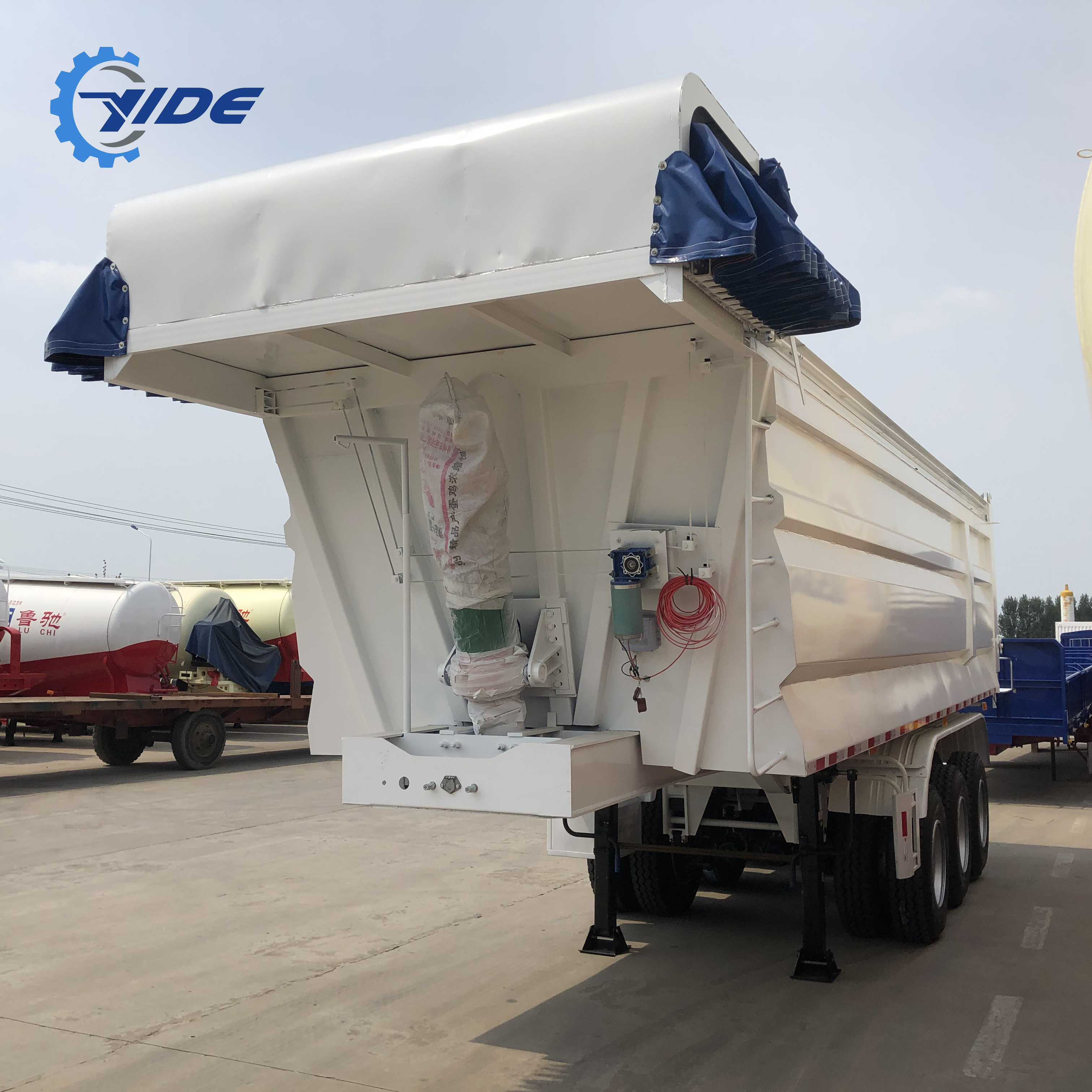

3 Axles Dump Semi Trailer

Overall Dimension

9500(L)*2500(W)*3500(H)mm

Casein side Dimension

9300(L)*2500(W)*1800(H)mm

Tare Weight

8T

Pay Load

60T

Loading Volume

42CBM

Dumper Bucket Thickness:

Side 6mm, Bottom 8mm

Suspension

Mechanical Suspension with 10-layers leaf spring

Steel

Q345B

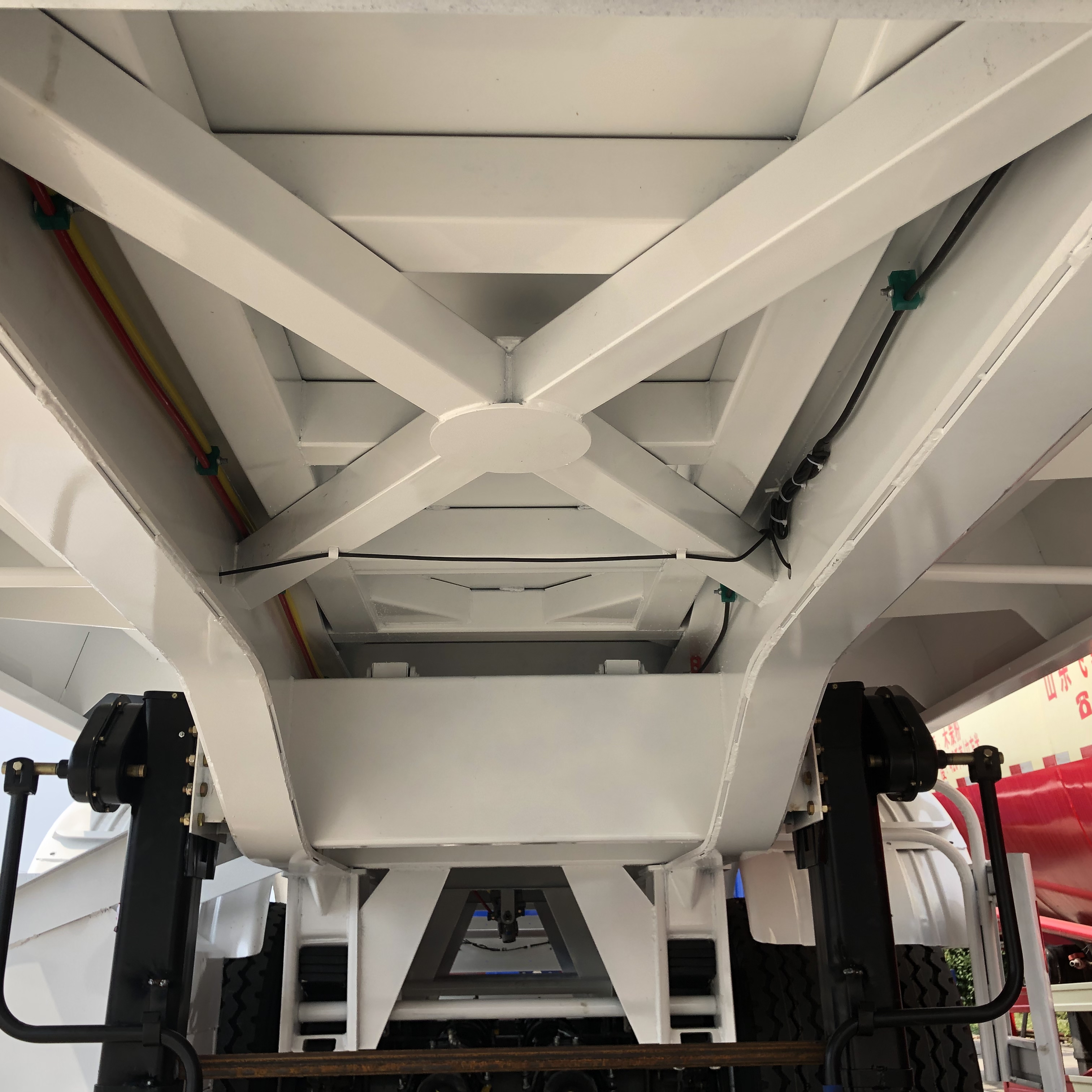

Main Chassis

Beam Height 500mm

Top Flange Thickness 14mm

Bottom Flange Thickness 16mm

Middle Board Thickness 8mm

King Pin

2"(50mm)or3.5"(90mm)

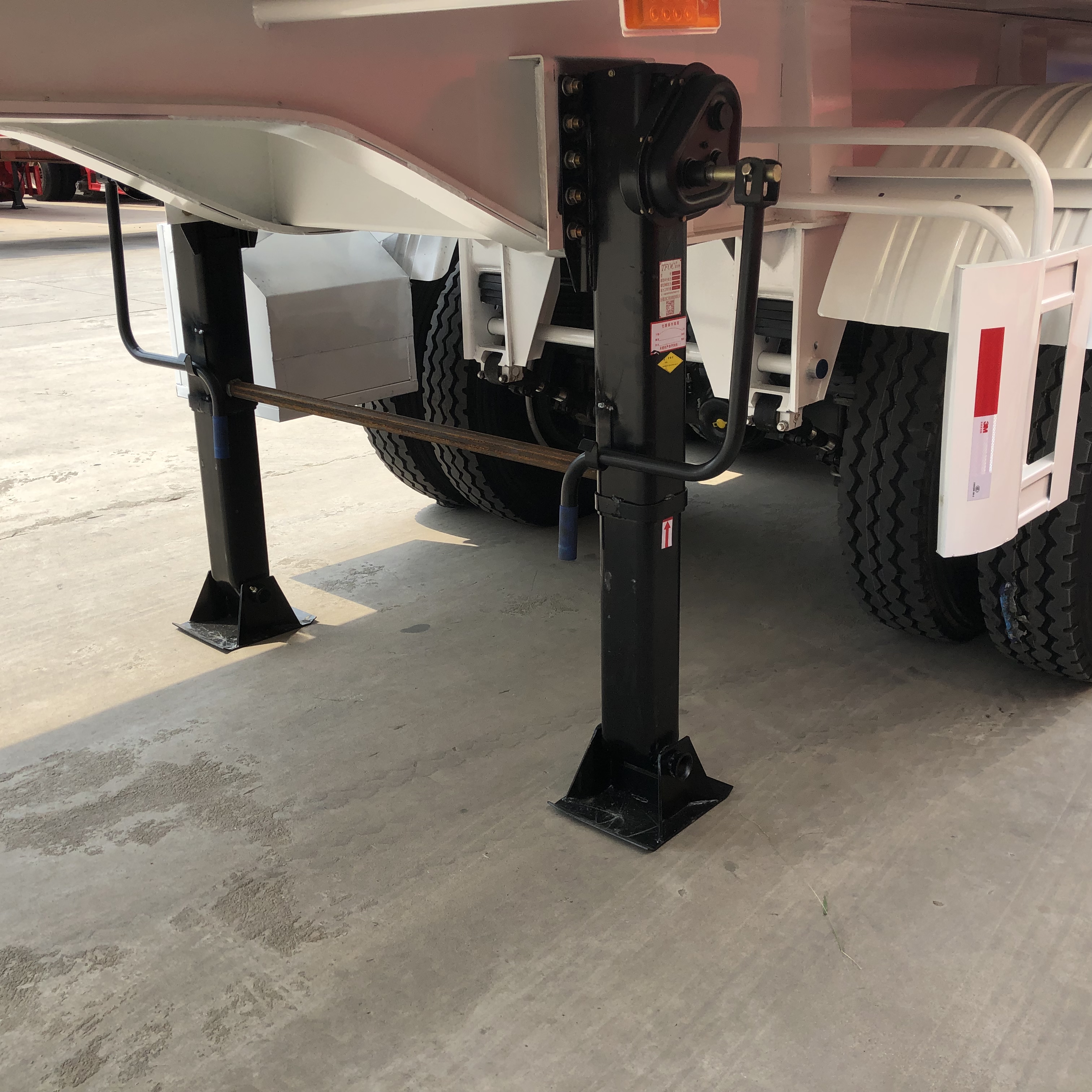

Landing Gear

Heavy Duty 28ton*2

Tyre

12R22.5*13pc

Axles

3*13T

Hydraulic jack

214-5-6830

Light

Tail lamp with turn signal,brake light & reflector,side lamp etc

Electric System

24V, One Set 6-core Standard Cable

Tool Box

1pc

Spare Tire Rack

1pc

Painting

Primer Coating, Top Painting, Wax Polishing

Color

Any color
