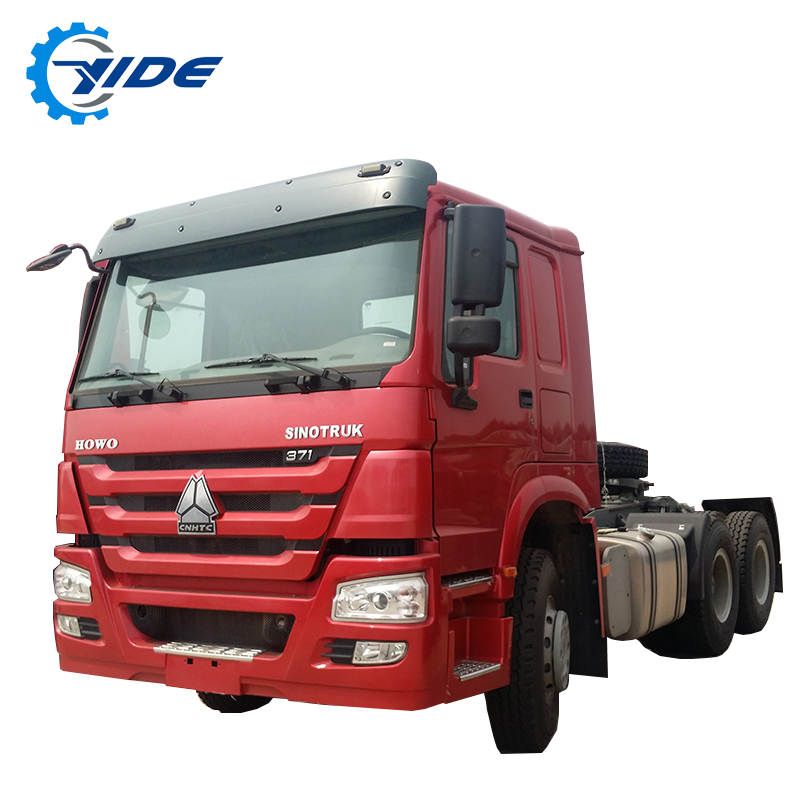

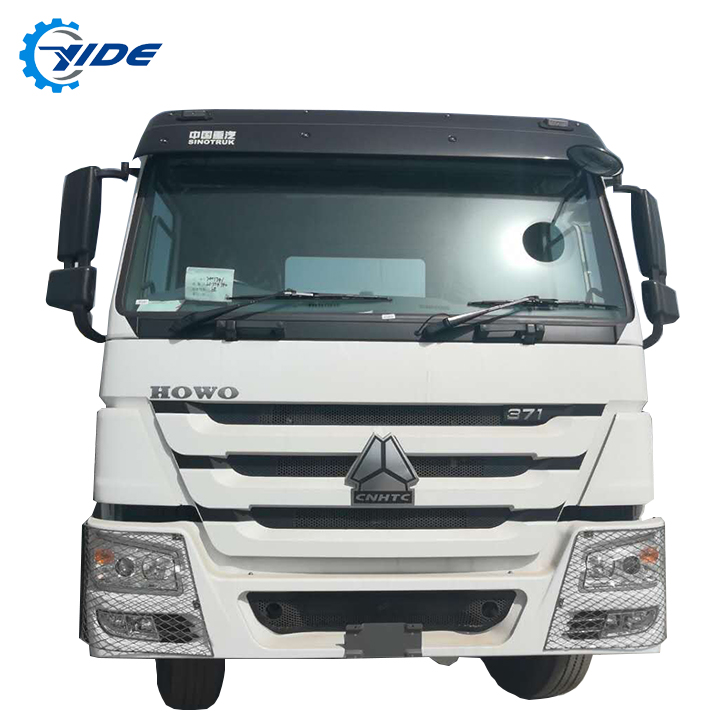

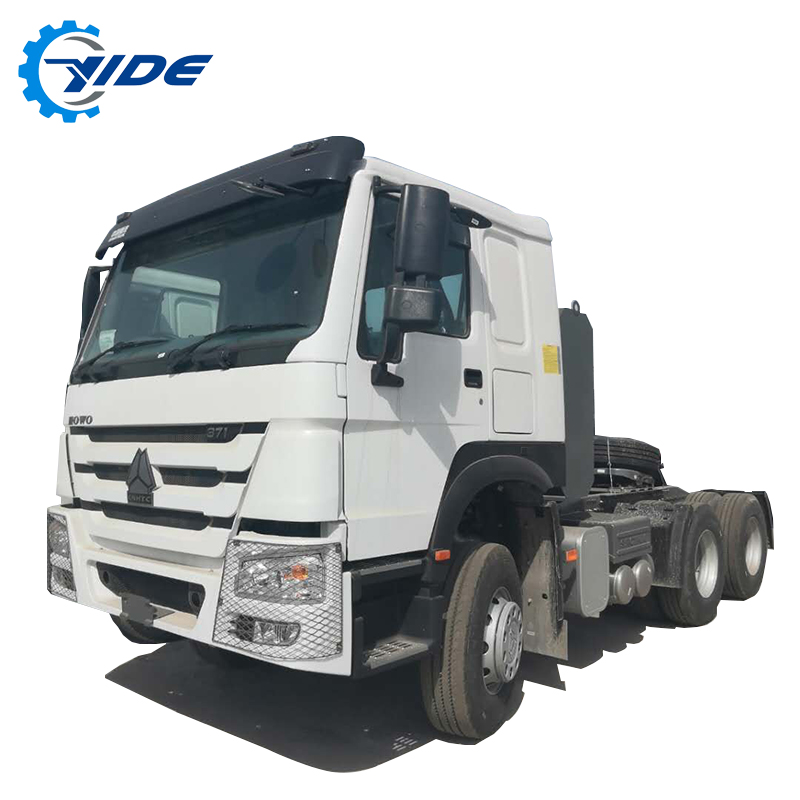

HOWO 6X4 Tractor Truck

Product Parameter
Chassis Model	ZZ4257N3241,ZZ4257V3241
Driving Type	6X4
Cabin	HW76—HOWO Extended cabin. Basic configuration is with single sleeper; new type seat; adjustable steering wheel from up and down, front and rear ; new type integral warm air heater with European style; the German VDO instrument which synchronized with the world high level heavy duty truck; road vehicles is with four point floating suspension (front spiral spring, rear air spring) with shock absorbers, off road vehicles is with four point floating spring suspension + shock absorbers, each type of cabin is with transverse stabilizing device, double lock safety belt; external sunshade; fourth generation air conditioning, air conditioning control board is liquid crystal display with LED lighting; with cruise; with sound warning system for abnormal generator voltage (to prevent damage of electronic devices); electric windows.
	HW70--HOWO standard cabin. Basic configuration is without sleeper.
	HW79--HOWO high roof cabin. Basic configuration is with double sleeper. and others is similar to the HW76.
Engine	Make: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Engine model: WD615.47, 371 HP;WD615.87,290HP;WD615.69,336HP;D12.42-20,420HP;Emission ：Euro 2
	Emission ：Euro 2
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Displacement: 9.726 L
Transmission	HW19710, 10F & 2R
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance;
Front Axle	HF9, 1x9000 KGS
	Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS
	Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
	Ratio:4.42
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
	Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20(11), one spare tyre
Fuel Tank	400L
Fifth Wheel	90#
Overall Dimension	6900*2550*3800mm
